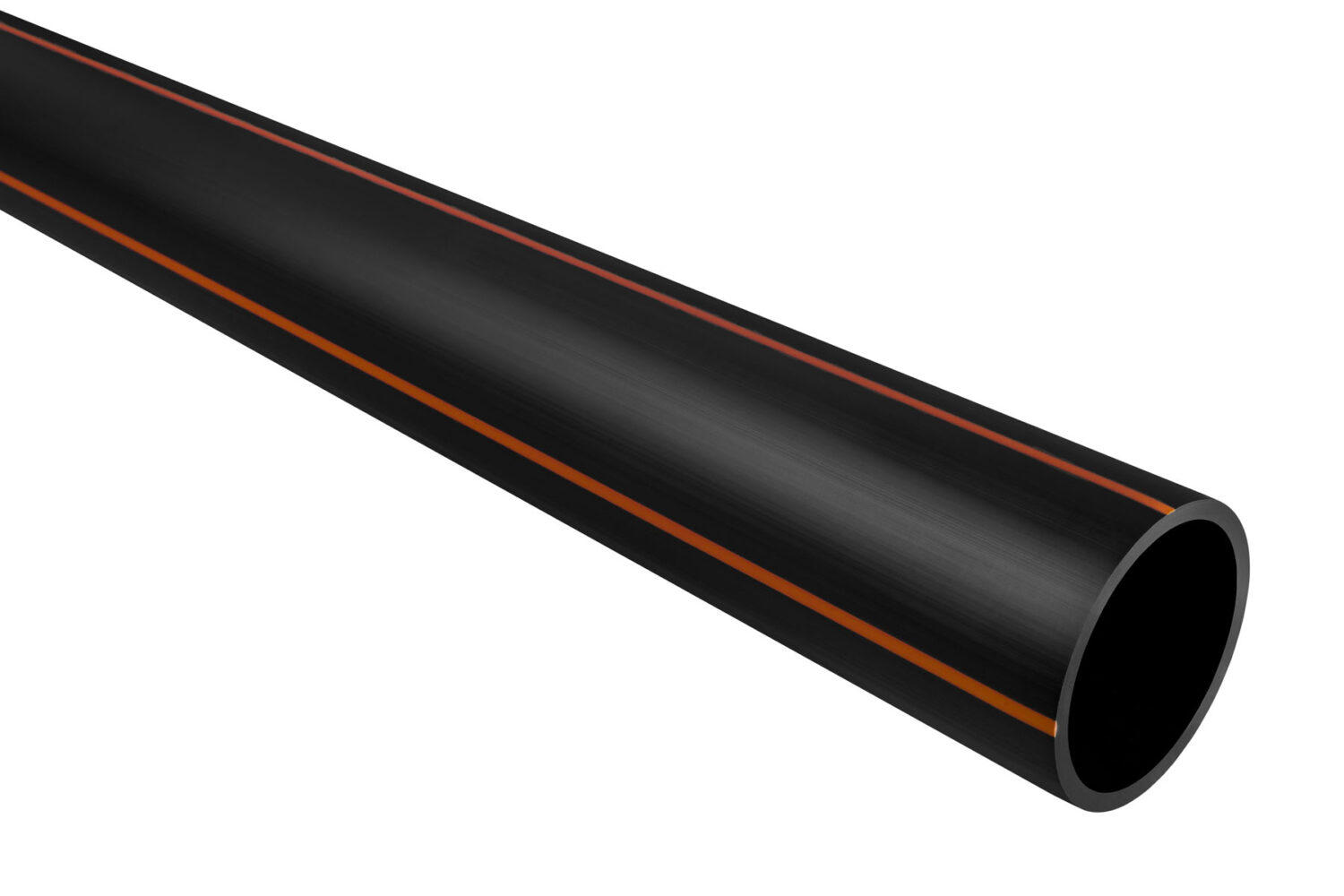

Pipes for the installation of PE100-RC / PE100 SDR 17 (PN10) ; PE100-RC / PE100 SDR 11 (PN16) sewage systems
| Reference documents: | PN-EN 12201-2+A1:2013-12 |
| PKWiU: | 22.21.21.0 |
| Customs code: | 3917 21 10 |
| Purpose: | –construction of an urban and economic sewage system
–construction of a combined sewage system –for pressure rainwater drainage –to a pressure sanitary sewage system –for vacuum drainage systems |
| Application: | – in natural soil conditions
–in the pressure water transfer –in pressure and vacuum drainage and drainage in the ground –when draining bridges and viaducts –in ground collectors in underground heat pump installations –for glycol transport –in gravitational sewage transfer –as rainwater drainage pipes -hydrotransport – for other purposes |
| Material: | PE 100 RC (about 10% of the outer layer), PE100 (about 90% of the inner layer) |
| Nominal pressure: | PN10 (SDR 17) ; PN16 (SDR 11) |
| SN: | SN20 (SDR 17) ; SN 80 (SDR 11) |
| Colour: | a) Black with brown stripes
b) Green outside, black inside c) Green outside and inside, black on the inside |
| External diameter: | 90; 110; 125; 140; 160; 180; 200; 225; 250; 280; 315; 355; 400; 450; 500; 560; 630 |
| Section lengths [rm] : | 12 |
| Notes: | a) the possibility of making a pipe in a different color or and / or a different color of the belt
b) the possibility of making a pipe with a different coil length |
